How High to Mount a 75 Inch TV

A tall screen hangs low

At 37 in tall and 65.5 in wide, a 75 inch TV has to come down a long way to keep its middle at your eyes. Centered at 42 in, its bottom edge sits only 23.5 in above the floor and its top at 60.5 in. That can look low on a bare wall, but the low bottom edge is simply what a big screen at eye level needs. From a seat 10 ft away you look up just 9° to the top edge.

Because the edge is so low, nearly any media console under a 75 inch TV becomes the thing that sets its height. Measure the console, add the gap you like between console and screen, and use that as the lowest spot in the calculator.

When furniture lifts it

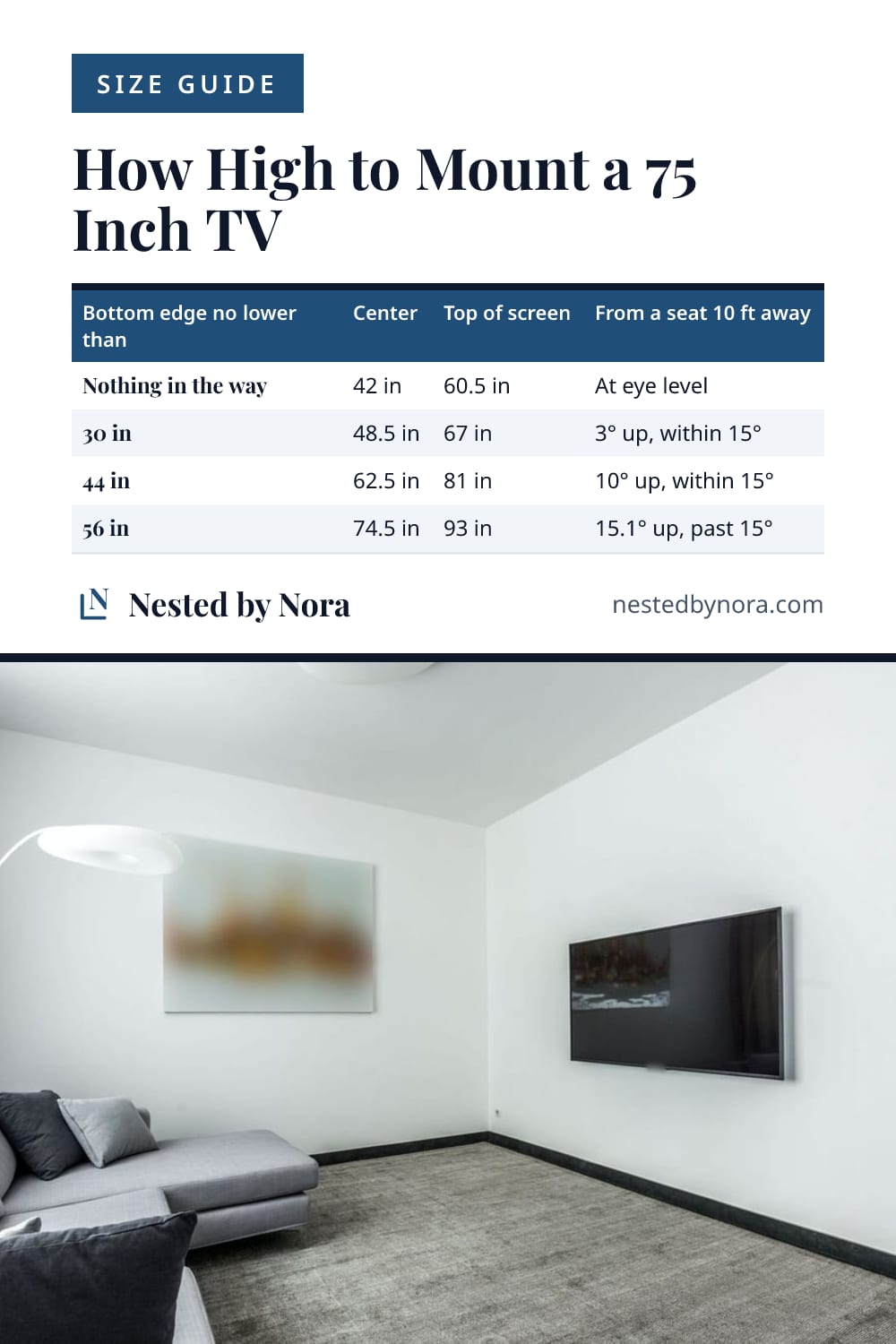

The table above shows the climb. Over a 36 in dresser or tall console, the center rises to 54.5 in and the top to 73 in, a 6° look up from 10 ft away. That’s still a comfortable view from the sofa.

Why a mantel is too high from a normal seat

On a mantel line at 56 in, the center of a 75 inch TV goes to 74.5 in and the top all the way to 93 in. From 10 ft away, the middle of the screen is 15.1° above your eyes, just past the 15° that keeps the view comfortable. To stay within it from that seat, the bottom edge would need to stay at 55.5 in or below. Three things fix it: a lower spot, a seat farther back, or a tilting mount that angles the screen down toward you. Check the manual first, too, since some TVs shouldn’t be placed over a fireplace at all.
